CONTEXT PLUS IP30 CONVENTIONAL FIRE ALARM PANEL 2 4 AND 8 ZONE EN54 2/4 CERTIFIED SAFETY EQUIPMENT

Description:

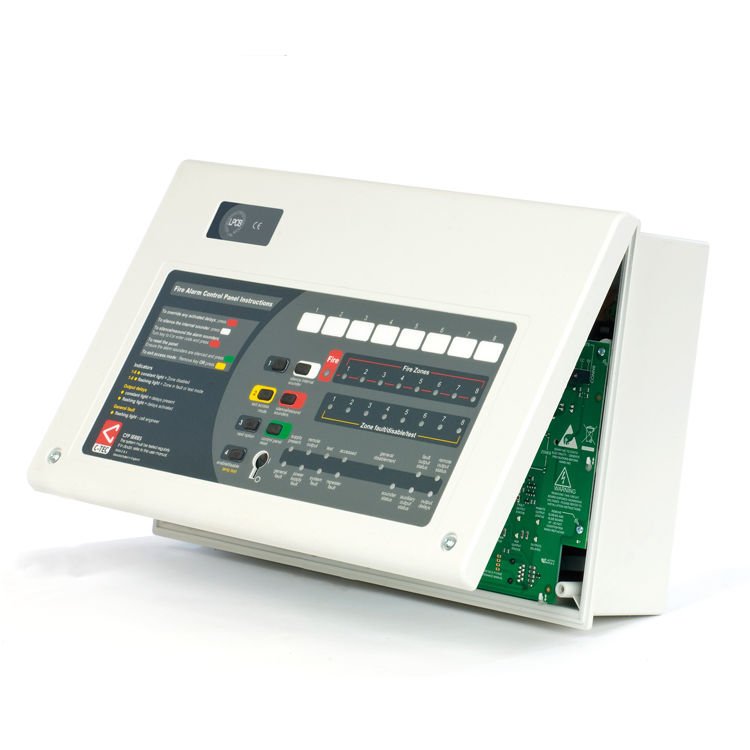

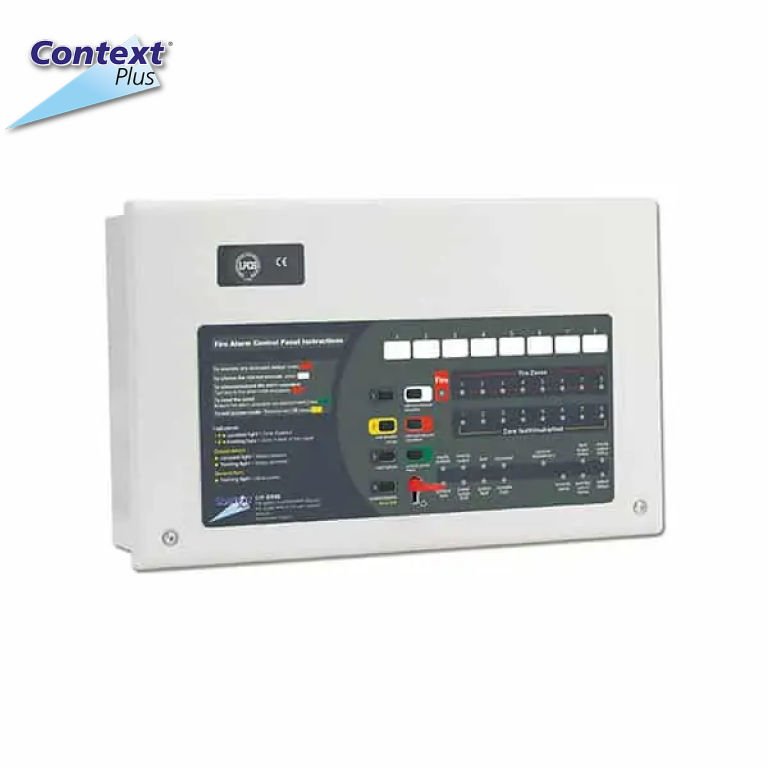

The Context Plus CFP IP30 Conventional Fire Alarm Panel is an EN54-2/4 certified multi-zone fire detection control panel available in 2-, 4- and 8-zone configurations. Built for installer-friendly setup and reliable long-term operation, it includes a built-in 1.5 A PSU, end-of-line modules, fault monitoring, and optional expansion for repeaters or relay boards. Its durable IP30 plastic enclosure ensures protection and easy wall mounting for use in offices, industrial sites, and public buildings.

Key Features:

• LPCB-certified to EN54 Parts 2 & 4 standards

• Colour-coded control panel with intuitive buttons and combined keypad & key-switch access

• Models available in 2, 4 or 8-zone configurations

• Four independent conventional sounder circuits included

• Built-in 1.5 A switch-mode power supply compliant with EN54-4/A2

• Advanced programming options: zone walk-test, delayed alarm activation, non-latch mode* and coincidence logic*

• Two dedicated on-board relays for fire and fault signal outputs

• Compact plastic enclosure with flush or surface mounting (no separate bezel needed)

• Low standby current draw for energy-efficient operation

• Repeater support: up to eight two-wire repeaters via one CFP761 network driver card

• Two open-collector outputs for remote functions (Remote & Reset)

• Inputs for ‘Class Change’ and ‘Alert’ functionality

• Space to accommodate two 12 V VRLA batteries (max. 3.2 Ah each)

• Installer-friendly design allowing easy first-fix installation and routine maintenance

Industrial Uses & Applications:

• Residential / Home

• Commercial / Hospitality

• Industrial / Manufacturing

• Education / Laboratories
