CONTEXT PLUS POLYCARBONATE INGRESS PROTECTION CONVENTIONAL MANUAL CALL POINT EMERGENCY AND FIRE ALARM

Description:

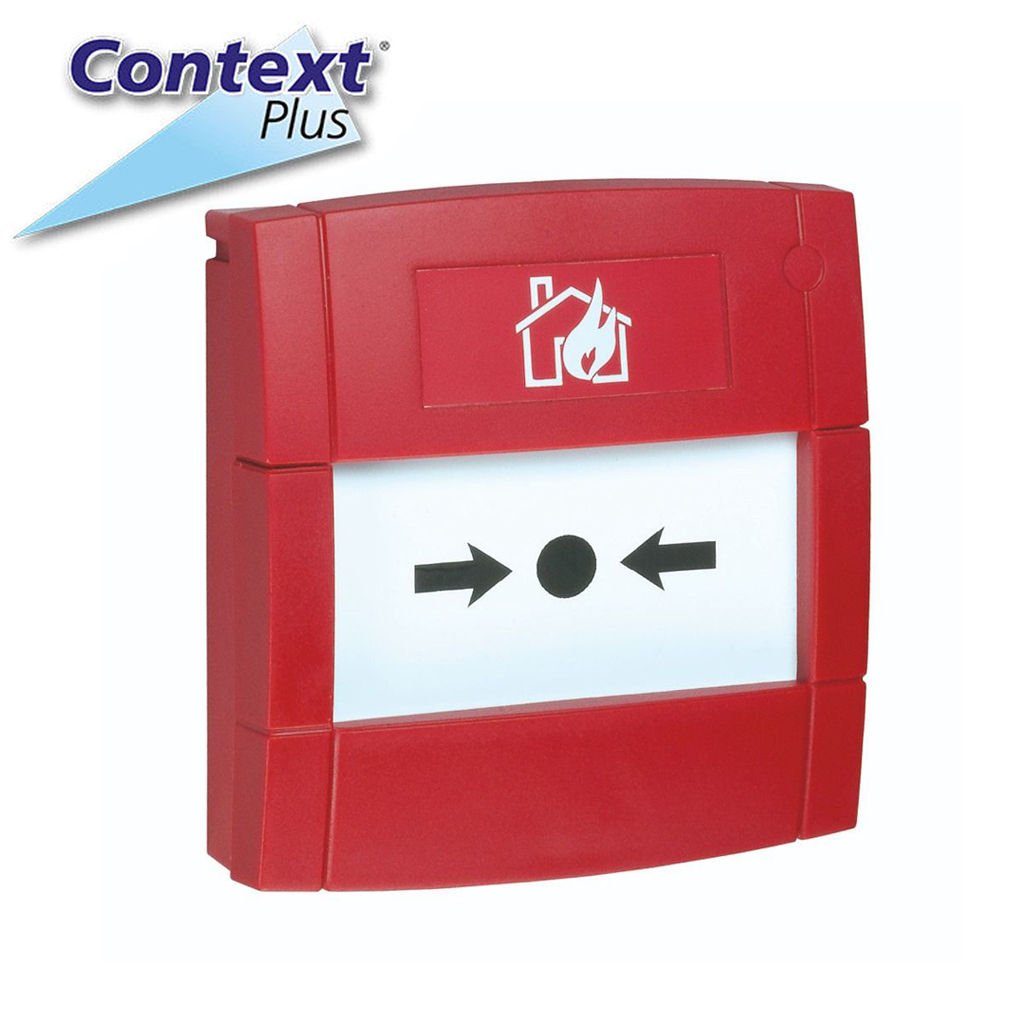

The Context Plus Manual Call Point is a conventional fire alarm interface designed for emergency use in buildings. It features a polycarbonate/ABS enclosure with ingress protection (IP24D) for durability against dust/water splash, and offers both resettable and break-glass operating elements. With a loop termination block for quick wiring, it supports maximum 30 V DC and 2 A switching, and is suitable for indoor surface or flush mounting. It is compatible with conventional fire alarm panels and meets relevant standards for reliability and safety.

Key Features:

• Cable termination range: 0.5-2.5 mm².

• Maximum voltage: 30 V DC; switching current: 2 A.

• Ingress protection rating: IP24D (standard version) and up to IP67 (weatherproof variants).

• Operating temperature: −10 °C to +55 °C standard; storage and extreme versions to higher/lower extremes.

• Material: Polycarbonate (PC) / ABS engineering plastic for strength and flame resistance.

• Weight: approx. 180 g.

Industrial Uses & Applications:

• Residential / Home Use

• Commercial / Hospitality

• Industrial / Manufacturing

• Automotive / Vehicle

• Education / Laboratories
