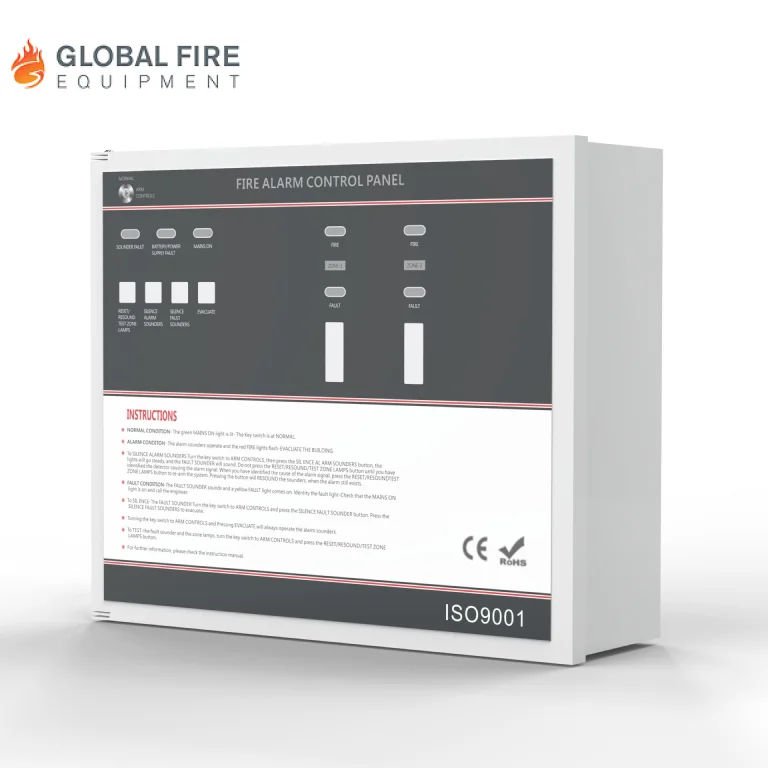

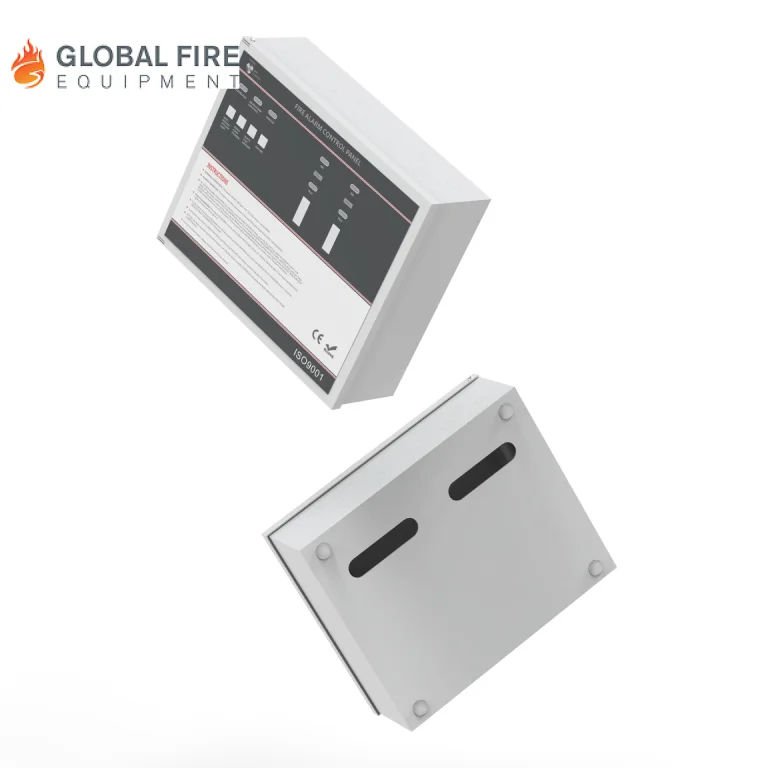

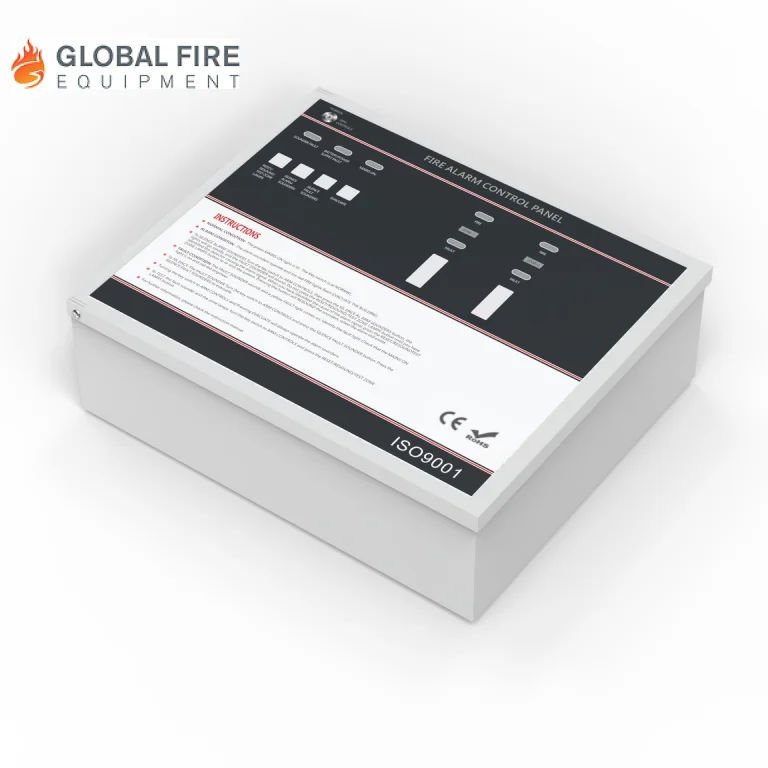

GLOBAL FIRE CP100 6 ZONE CONVENTIONAL FIRE ALARM CONTROL PANEL

Description

The CP100 is a 6-zone conventional fire alarm control panel designed for non-addressable (conventional) fire detection systems in commercial and institutional buildings. It features six dedicated fire alarm zones and is constructed with a robust iron housing. According to the listing, it is supplied by Global Fire (Model OR-CP100X) and is expandable in some variants to more zones. The panel is intended for stand-alone installations where conventional detectors and manual call points are connected to separate zone circuits. It is powered by AC 220 V (50/60 Hz) supply and provides connection terminals for wired detectors/call points etc.

Key Features

• Six dedicated fire alarm zones (with mention of expansion up to 18 zones in some models)

• Input power: AC 220 V, 50/60 Hz for main supply

• Rugged iron housing for durability and installation reliability

• Supports 25-50 wired terminal connections (depending on configuration)

• Simple interface for system monitoring and operation, suitable for commercial/institutional applications

• Certification: Meets CE and ISO 9001 standards

Industrial Uses / Applications

• Small to medium commercial buildings (offices, retail stores)

• Educational institutions (schools, colleges)

• Residential complexes and apartment buildings

• Small industrial facilities where conventional detection is sufficient

• Retrofit applications where addressable systems are not required
