Description

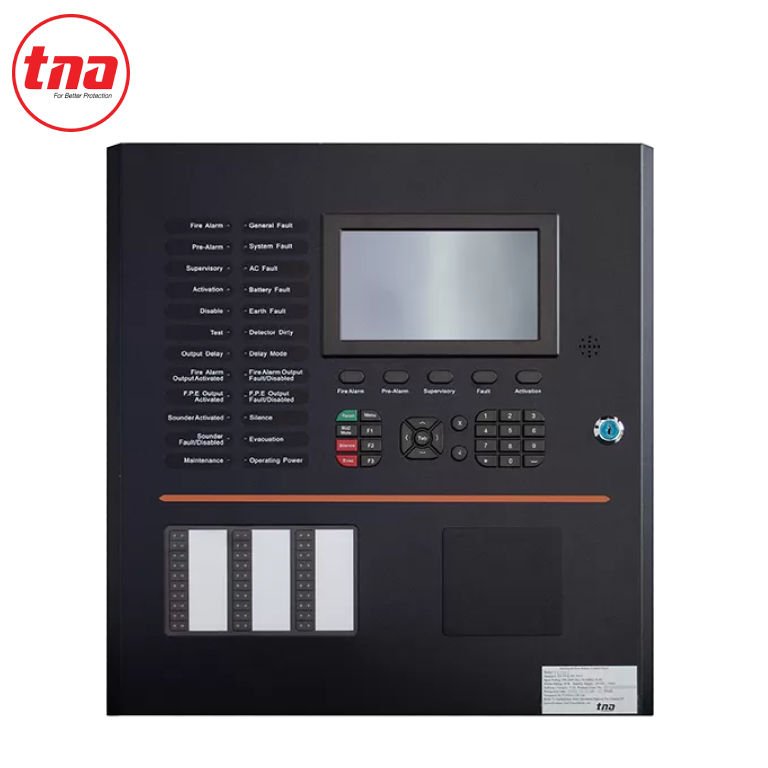

The TX7002 is an addressable fire alarm control panel designed for advanced fire detection systems. It supports up to 2 loops, each capable of connecting up to 254 addressable devices, and can be networked up to 512 panels. Compliant with EN 54-2 & EN 54-4 standards, it offers a modular design, large memory capacity, intuitive touch-screen interface and integrated system logic for cause-and-effect functions (such as elevator control, HVAC shut-down, gas release).
Interface options include USB, Ethernet, RS232, RS485 and CANBus, enabling connection to other building systems and configuration equipment.
Key Features
-
Compliance with EN 54-2 & EN 54-4 standards for fire alarm control panels.
-
Supports 1 or 2 loops, each with up to 254 devices.
-
Network capability up to 512 panels, enabling large installations.
-
Advanced user interface: large LCD/touch-screen display and keypad for easy operation.
-
Supports multiple communication protocols: USB, RS232, RS485, Ethernet, CANBus.
-
Built-in loop protection (e.g., surge protection up to 4 kV) for robust operation.
-
Large memory capacity: e.g., stores 1,000 fire events and 10,000 general events.
-
Wide voltage input: 230 VAC +10/-15% (50 Hz) and supports a standard battery backup arrangement.
Industrial Uses / Applications
-
Large commercial buildings (offices, retail malls)
-
Educational campuses and hospitals
-
Multi-storey residential buildings
-
Industrial plants requiring advanced fire logic (e.g., HVAC, gas shutdown)
-
Networked sites with multiple panels and integrated system control
