Description

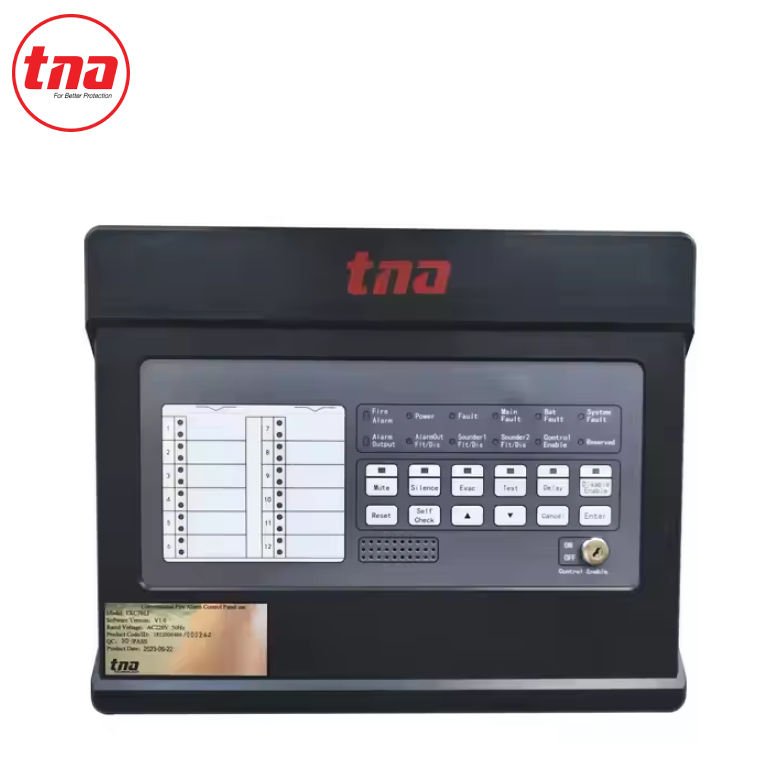

The TXC7004 is a conventional fire alarm control panel designed for smaller-to-medium sized installations. It supports a conventional device architecture where individual detectors, manual call points and sounder circuits are wired to zone inputs rather than addressable loops. The panel features up to 4 zones (model TXC7004) in the series and is housed in a compact metal enclosure with battery backup. Each zone is capable of supporting up to 30 conventional devices.
Key Features
-
Four conventional fire alarm zones with support for up to 30 devices per zone.
-
Mains supply: AC 220 V (187 V ~ 242 V), 50 Hz.
-
Built-in backup battery provision (12.8 V, 4 Ah) to sustain operation during mains failure.
-
Dedicated alarm (bell) output current rating of 0.5A per zone; auxiliary power outputs (2 × 0.5A) for accessory devices.
-
Enclosure dimensions: 311 mm (W) × 60 mm (D) × 251 mm (H); installation hole spacing (horizontal 270 mm × vertical 215 mm).
-
Operating ambient: 0 °C to +40 °C; relative humidity up to 95% non-condensing.
-
IP rating: IP30 (indoor installation) for standard model.
Industrial Uses / Applications
-
Small offices, retail outlets
-
Schools and clinics
-
Warehouses with modest zone coverage
-
Residential/apartment fire detection support
