TNA TXC7012 12-ZONE CONVENTIONAL FIRE ALARM CONTROL PANEL

Description

The TXC7012 is a conventional fire alarm control panel designed for use in small to medium-sized commercial or industrial installations. It supports up to 12 zones of conventional fire alarm devices (smoke detectors, heat detectors, manual call points) and features separate outputs for alarm notification appliances and auxiliary equipment. The panel complies with classic conventional architectures (zones instead of addressable loops).

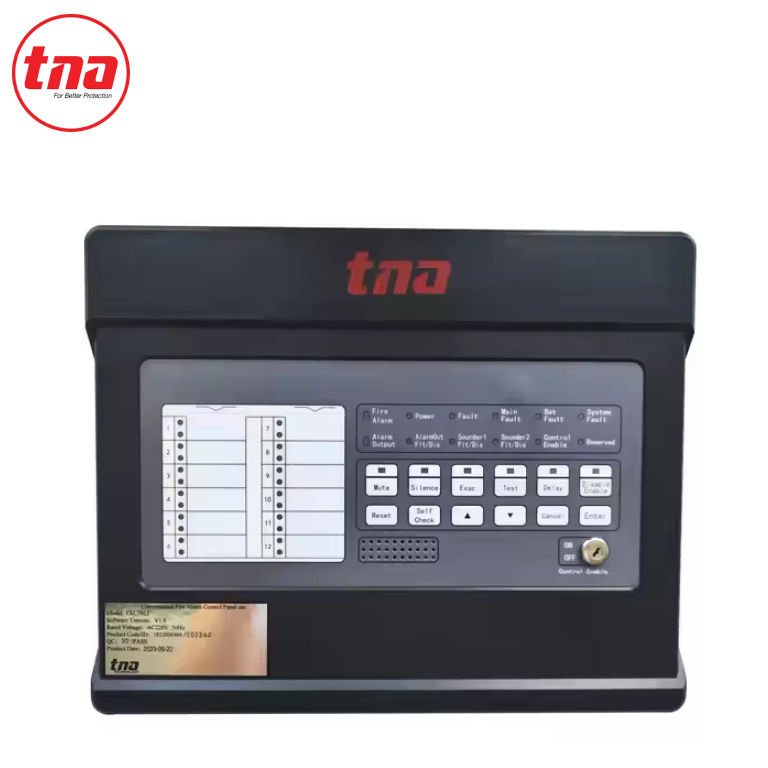

The unit is housed in a metal enclosure, includes LED indicators for power, fault, zone-alarm, and possesses a user-friendly front-face interface for status monitoring and system controls such as Reset, Silence, and Latch.

Key Features

• Zone Capacity: 12 Conventional Zones, each capable of monitoring fire detection.
• Device Capacity: Supports a large number of conventional field devices (e.g., up to 30 detectors or manual call points) per zone.
• Flexible Zone Configuration – Available in 1, 2, 4, 8, or 12 zones (TXC7001–TXC7012), each supporting up to 30 detection devices.
• Wide Compatibility – Seamlessly works with conventional detectors (TXC7101, TXC7111), manual call points (TXC7141), and sounder strobes (TXC7301).
• Compliance: Certified to meet European standards, typically EN54-2 (Control and Indicating Equipment) and EN54-4 (Power Supply Equipment)
• User Interface: Features a simple, user-friendly interface with clear LED indicators for:
• Separate Fire and Fault status for each of the 12 zones.
• System-wide indicators for Power, Battery, Fault, and General Alarm.
• Monitored Sounder/Bell Outputs: Includes multiple supervised outputs for connecting alarm sounders and strobes.
• Auxiliary Power Outputs: Provides power for external devices.
• Fault Relay: Dedicated NC/NO output for signaling general system faults (e.g., power failure, zone fault).
• Fire Alarm Relay: Dedicated NC/NO output for signaling a general fire alarm to external systems (e.g., HVAC shutdown, security systems).

Applications

• Office Buildings

• Retail Stores

• Schools & Institutions

• Warehouses

• Apartments

• Industrial Sites
